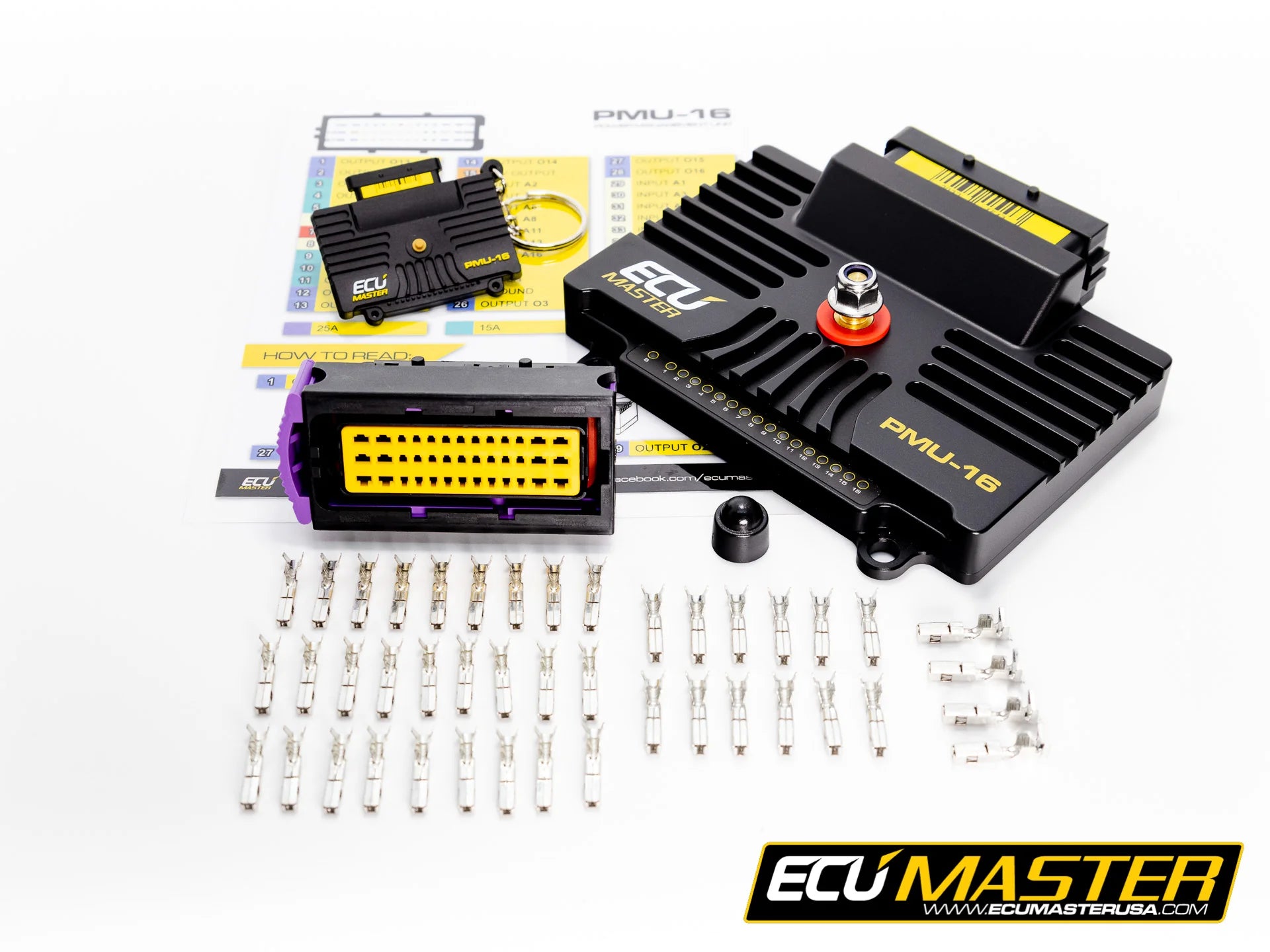

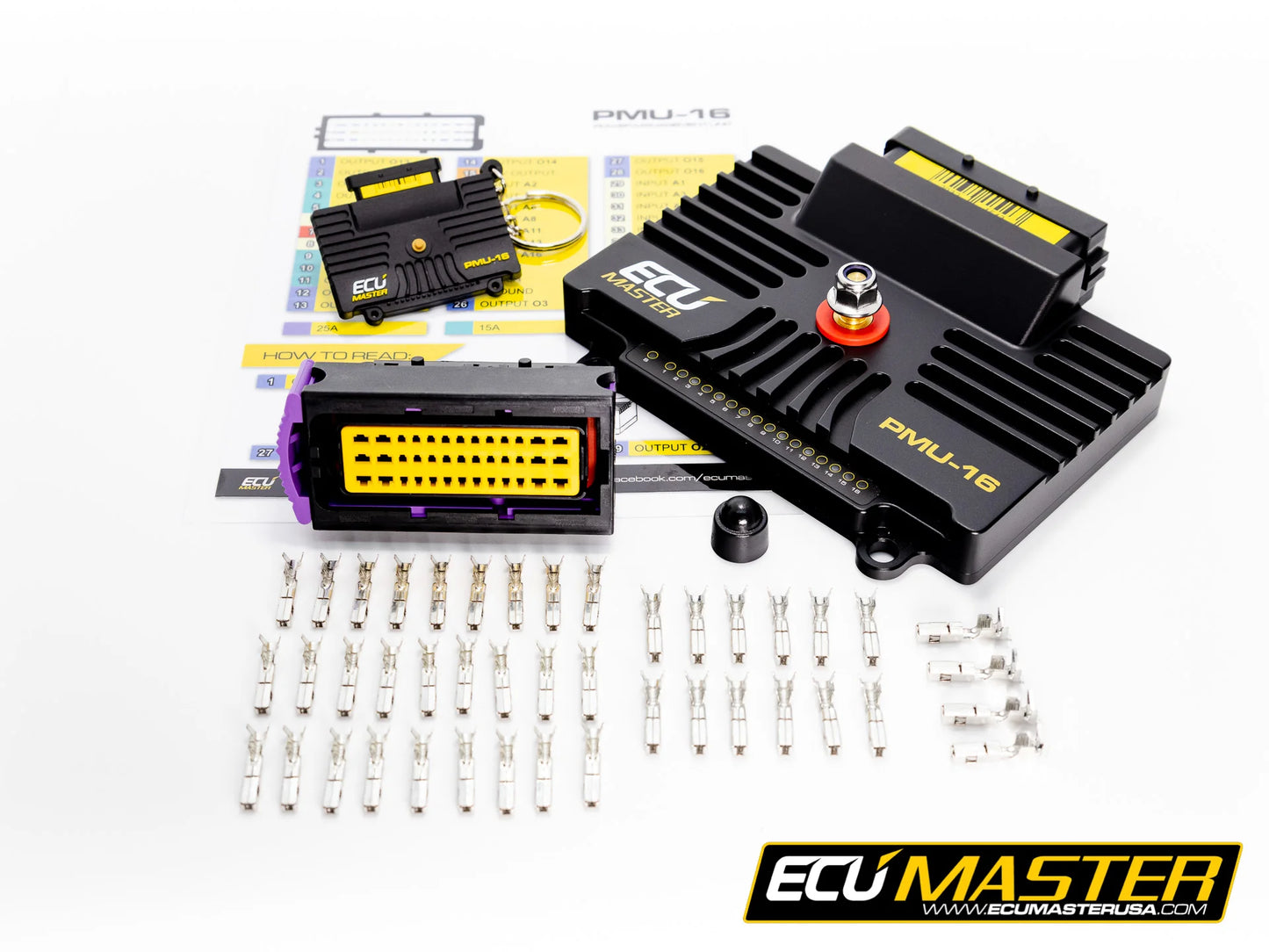

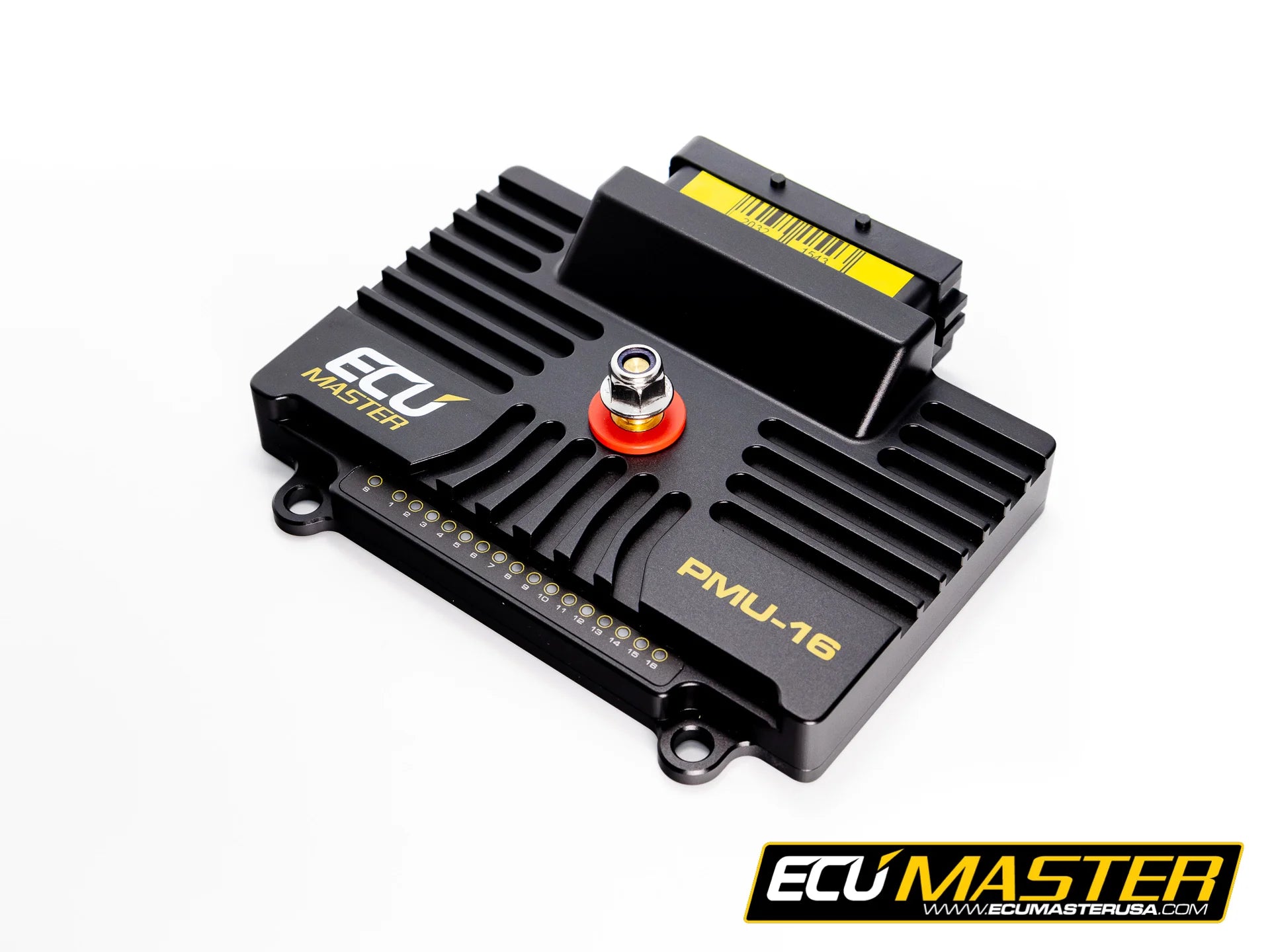

ECU Master PMU-16

The PMU16 is assembled according to IPC-S-815A standards to ensure product reliability. The device is manufactured on an automated assembly line with optical inspection, and automated testing (including burn-in). The PCB material and design and special surface coating ensure reliability even in the harshest environments. Carefully selected components allow for continuous and reliable operation across a very wide temperature range (AECQ-100 GRADE 1 (-40 to 125˚C).

GENERAL SPECIFICATIONS

• Temperature range AECQ100 GRADE1 (-40 to 125˚C) CPU 32 bits, 90MIPS
• Reverse polarity protection Yes, internal
• Operating voltage 6-22V, immunity to transients according to ISO 7637
• Enclosure IP 60, bespoke CNC machined aluminum
• Size (mm) and weight(g) 131x112x32.5, 345g
• Connectors 1 x 39 position connector, 1 x M6 stud for battery connection
• PC communication CAN (PCAN, ECUMASTER USBCAN)

OUTPUTS

• High current outputs 10 x 25A(cont.), 6 x 15A(cont.) with Overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output
• Total current output 150A continuous
• Output current control step 100mA
• Wipers output
• Dedicated output with wiper braking feature
• Monitored 5V, 500mA output for powering external sensors.

INPUTS

• Analog inputs 16 inputs, 10 Bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns
• CAN Keypads 2 x Ecumaster keypads (4, 8, 12 keys)

OTHER

• Output state indication
• 16 bicolor LEDs
• Accelerometer/Gyroscope
• 3D accelerometer with 3D gyroscope for logging and crash detection
• Real time clock
• Yes, super capacitor for backup power (up to 3 days)

CAN BUS

• CAN interface 2 x CAN2B CAN standard 2.0B 125, 250, 500, 1000 kbps
• Input/output stream
• User defined with bit masking, up to 48 input messages
