KV8

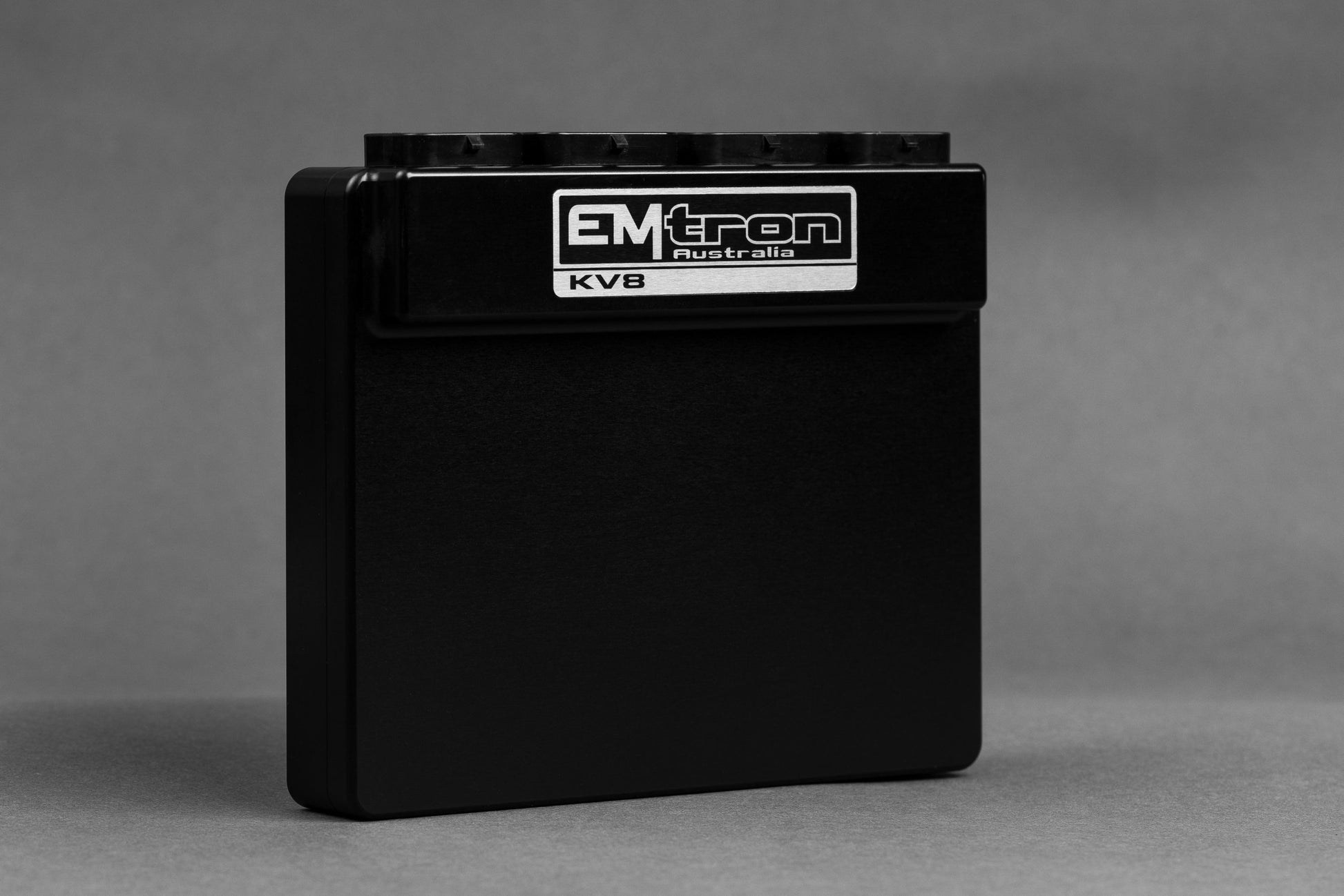

Emtron’s KV8 is a wire-in ECU with extreme flexibility.  Industry leading I/O count will ensure you do not have to make any sacrifices when configuring your engine and vehicle.  This ECU will support up to 8 Channels of fuel and 8 Channels fully sequential Ignition.  Every KV8 is housed in a durable billet Aluminum enclosure and includes up to 32MB permanent memory for on board logging, 4-channel oscilloscope function, Drive By Wire (DBW) control up to 2 channels, dual LSU4.9 Lambda controllers, dual digital Knock control, Ethernet communications and 3 axis G-force sensing to name a few.

Power Supply

• Operating voltage: 6.0 to 22.0 Volts DC (ECU shutdowns at 24.0V)
• Operating current: 390mA at 14.0V (excluding sensor and load currents)
• Reverse battery protection via external fuse
• “Smart” battery transient protection

Operating Temperature

• Max operating range: -30 to 110°C (-22 to 230°F)
• Recommended operating range: -30 to 85°C (-22 to 185°F)

Physical

• Aluminium 6061 grade CNC billet enclosure
• Enclosure size 134 mm x 162 mm x 27 mm
• Weight: 730g
• Connector system: 120-way Super Seal waterproof connectors with gold plated contacts, pin diameter of 1 mm
• Current rating: maximum 15A per pin (wire gauge dependant)

Internal

• Dual 100MHz processors
• 500Mb DDR RAM
• 32MB ECU logging memory, over 1200 channels available,  1Hz to 500Hz logging rate
• 4-Channel oscilloscope function
  • Sampling at 100k samples/second
  • Includes Crank and Cam sensor inputs
  • Includes Digital inputs 1-4
• On-Board barometric pressure sensor, range 40 – 115.0 kPa
• 3-Axis accelerometer, 16-Bit resolution, +2g/+4g/+8g dynamically selectable full-scale

Communications

• 1x High Speed Ethernet 100Mbps for tuning software connection
• 2x CAN 2.0B 1Mbps/ 6 Channels per node, total 128 messages
